The Best CNC Machine Manufacturer in pune

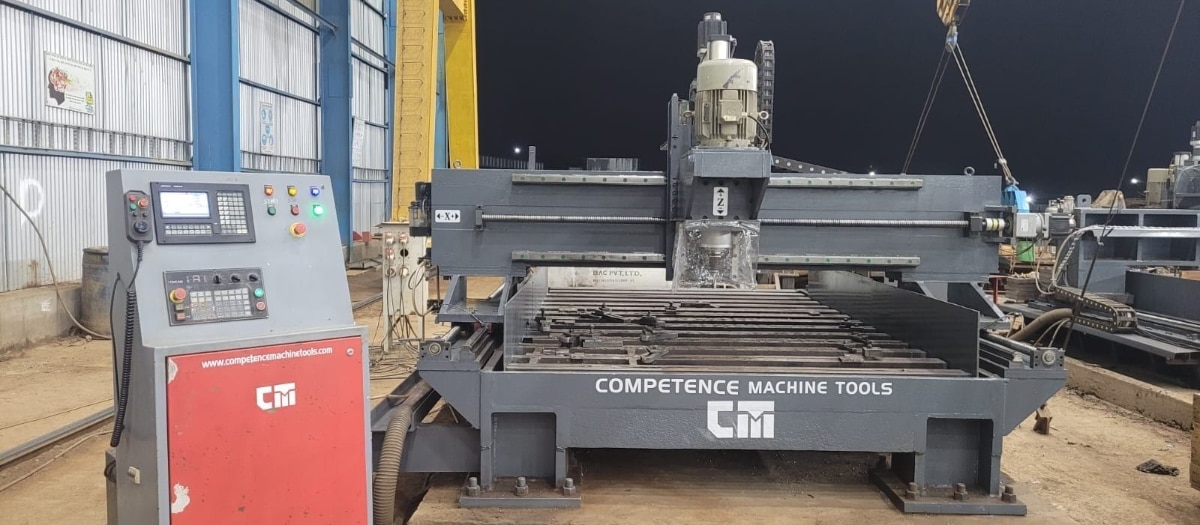

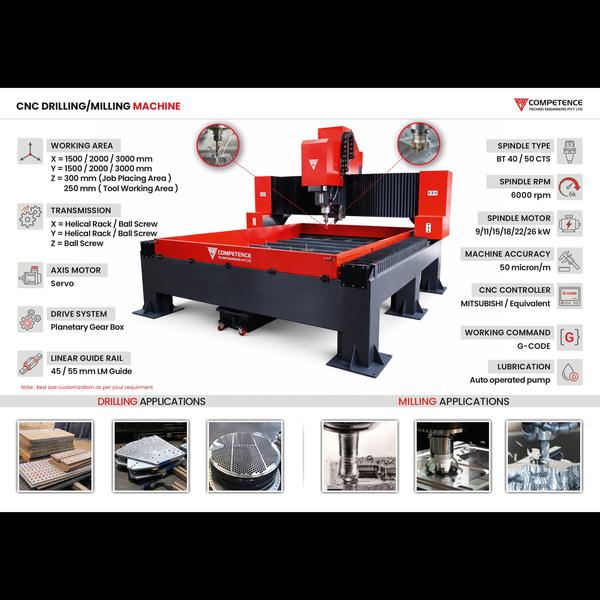

• WORKING AREA:1000 X 2000 X 200 MM 2000 X 3000 X 200 MM 2500 X 4000 X 200 MM • TRANSMISSION:X , Y AND Z AXIS TRANSMIT BY BALL SCREW. • LINEAR GUIDE & RAIL AND BALL SCREW:45 MM LM GUIDE AND 40 MM BALL SCREW • DRILL SIZE:UP TO 25 MM DRILL (U-DRILL APPLICABLE ONLY) • SPINDLE TYPE:BT 40/50 -150CTC (THROUGH COOLENT) • LUBRICATION SYSTEM: AUTOMATIC • SPINDLE MOTOR:7.5/11 KW MOTOR DRIVE • DRIVE MOTOR:SERVO MOTOR DRIVE • CNC CONTROLLERS:MITSHUBISHI M80 OR EQUIVALENT • WORKING COMMAND:G-CODE

Technical Specification Working Area : X Axis-1500/2000/2500MM, Y Axis-2000/3000/4000 MM, Z Axis-200 MM Linear Motion: 45 MM LM Guide & Block For X ,Y& Z Axis,2M Rack In X,Y Axis & 40MM Ball Screw in Z Axis Gear Box :1:5 Planetary Gear Box Spindle Type:BT40 With Through Coolant Spindle Motor : 7.5/11 KW Spindle Motor, Max 6000rpm Spindle Run Out:+/-2 Micron Driving Motor: Panasonic motor drive Repositioning Accuracy: +/- 50 Micron/Meter Hole Diameter Tolerance: +/- 70-100 Micron Drilling Capacity: Up To 40mm Diameter Maximum Drilling Thickness: Up To 100mm CNC Controller: ADTECH Lubrication: Easy Lube Make Automatic Chip Conveyor : Standard Chip Conveyor Axis Cover: PU Bellow Cover In All Axis Machine Structure: Fabricated Working Command : G-Code Power Supply: 430V , 50/60Hz-3 Phase
