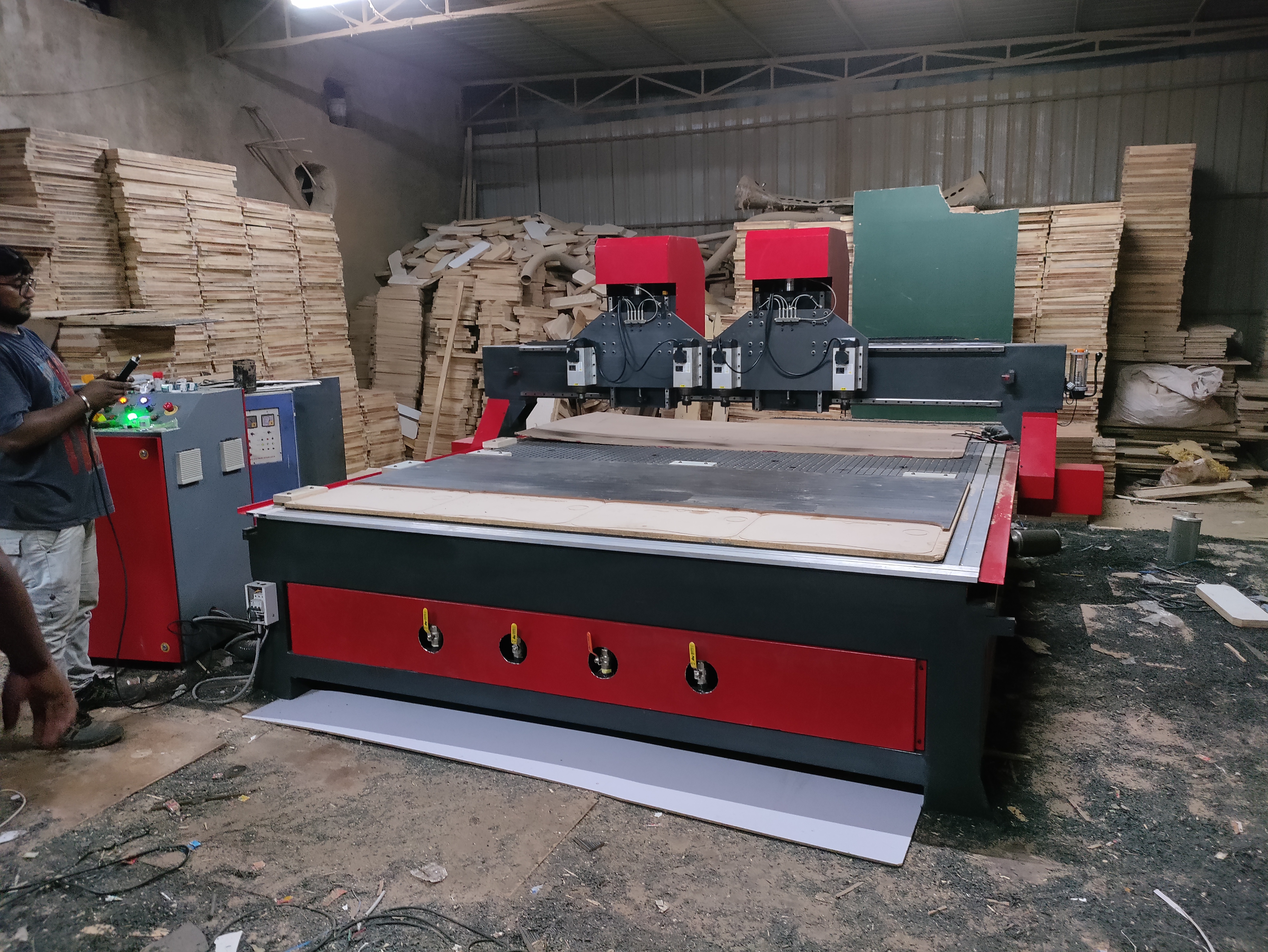

The CNC multi-head wood router machine is equipped with two or more router heads, each containing cutting tools such as router bits or end mills. These heads can operate independently or synchronously, depending on the machining requirements. The CNC multi-head wood router machine offers increased productivity compared to single-head machines by allowing simultaneous machining of multiple areas on the workpiece. This reduces cycle times and maximizes throughput.
| NO OF WORKING HEAD : | TWO OR MULTIPLE AS PER APPLICATION REQUIRMENT |
| WORKING AREA : | Z=200 mm |
| WORKING AREA : | Y=2500 / 3050 / 3650 mm ( AS PER TRAVEL REUIRED PER EACH HEAD ) |
| WORKING AREA : | X=1250 / 1520 / 1830 mm ( AS PER TRAVEL REUIRED PER EACH HEAD ) |
| TRANSMISSION : | Z= ø25*10mm Pitch Ball Screw |
| TRANSMISSION : | Y=1.25M Helical Rack |
| TRANSMISSION : | X=1.25M Helical Rack |
| AXIS MOTOR : | Stepper / Easy Servo / Servo |
| DRIVE SYSTEM : | Belt Pully / Planetary Gear box |
| LINEAR GUIDE RAIL : | 25 mm LM Guide |
| : | 3.2 / 5.5 kw ( Water cooled ) |
| SPINDLE TYPE : | 3.5 / 4.5 / 6 kw ( Air cooled ) |
| SPINDLE RPM : | 18000 to 24000 |
| MAX TRAVEL SPEED : | 30000 mm/min |
| MACHINE ACCURCY : | 100 micron |
| CNC CONTROLLERS : | DSP WEIHONG NK 105 |
| PROGRAM WORKING COMMAND : | G-CODE |
| LUBRICATION : | Auto / Manual hand operated pump |
| POWER SUPPLY : | 1PH 240V 50hz / 3PH 440V 50hz with Neutral and Earthing |
