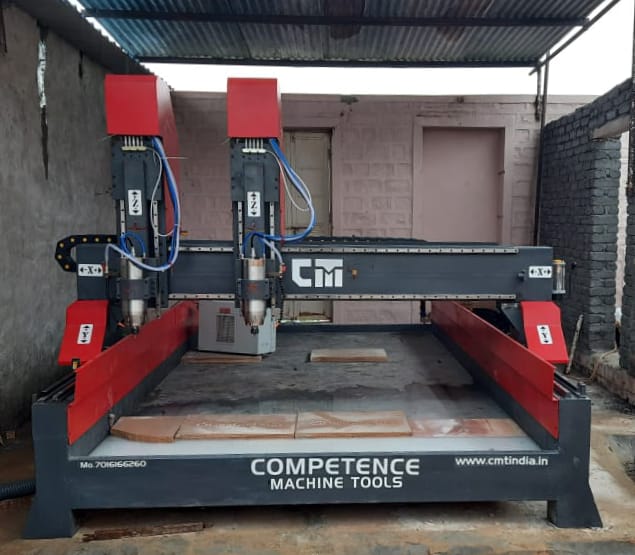

DOUBLE SPINDLE STONE CARVING MACHINE by COMPETENCE MACHINE TOOLS

DOUBLE SPINDLE STONE CARVING MACHINE

Description

Product details

CNC double head stone carving machine is a specialized tool used in the stone processing industry to carve intricate designs, patterns, and sculptures on stone surfaces with precision and efficiency. It employs computer numerical control (CNC) technology to automate the carving process, allowing for intricate designs to be replicated consistently. The machine is equipped with two or multi carving heads, each containing cutting tools such as diamond-tipped router bits or engraving tools. The dual heads enable simultaneous carving on multiple areas of the stone surface, enhancing productivity.

Other Specifications

NO OF HEAD :TWO OR MULTI AS PER APPLICATION REUIRED
:Z= 300 / 600 / 900 mm
:Y= 3050 / 3650 mm ( As per Requirement of each head )
WORKING AREA :X= 1530 / 1830 mm ( As per Requirement of each head )
:Z= ø25*10mm Pitch Ball Screw
:Y=1.25M Helical Rack
TRANSMISSION :X=1.25M Helical Rack
AXIS MOTOR :Easy Servo / Servo
DRIVE SYSTEM :Planetary Gear box
LINEAR GUIDE RAIL :25 mm LM Guide
SPINDLE TYPE :5.5 kw ( Water cooled )
SPINDLE RPM :24000 rpm
MAX TRAVEL SPEED :30000 mm/min
MACHINE ACCURCY :100 micron
CNC CONTROLLERS :DSP WEIHONG NK 105
PROGRAM WORKING COMMAND :G-CODE
LUBRICATION :Auto / Manual hand operated pump
POWER SUPPLY :3PH 440V 50hz with Neutral and Earthing
